RF Connector MMCX Male PCB Mount

Name: RF Connector MMCX Male PCB Mount
Brand: Terui
Price: 1 USD

Wholesale RF Connector MMCX Male PCB Mount from china suppliers

Brand Name : Terui

Model Number : MMCX-JHD

Certification : RoHS

Place of Origin : China

MOQ : 10

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000000pcs per month

Delivery Time : 3-10 working days

Packaging Details : Standard export packaging

Contact Now

RF Connector MMCX Male PCB Mount

TYPE MMCX is a one kind of miniature connector with snap-on mechanism.The connector is applicable from DC up to 6GHZ with advantages of small size, light weight, low RF leakage and etc.

It has two kind of versions:50Ω and 75Ω..

Product Details

RF Connector MMCX Male PCB Mount

Teruilai P/N: MMCX-JHD

RoHS Certificate: Compliant

Electrical data	Requirments
Frequency range	0-6GHZ
Dieletric withstanding voltage	500V
Characteristic impedance	50Ω
Insulation Resistance	≧1000MΩ
VSWR	1.25:1
Mechanical data	Requirments
Durability (matings)	≧500

Environmental data	Requirments
Temperature range	-40℃ to 90℃

Material data	Requirments
Connector parts	Material	Plating
Body	Brass	Gold
Pin contacts	Brass	Gold
Insulators	PTEE

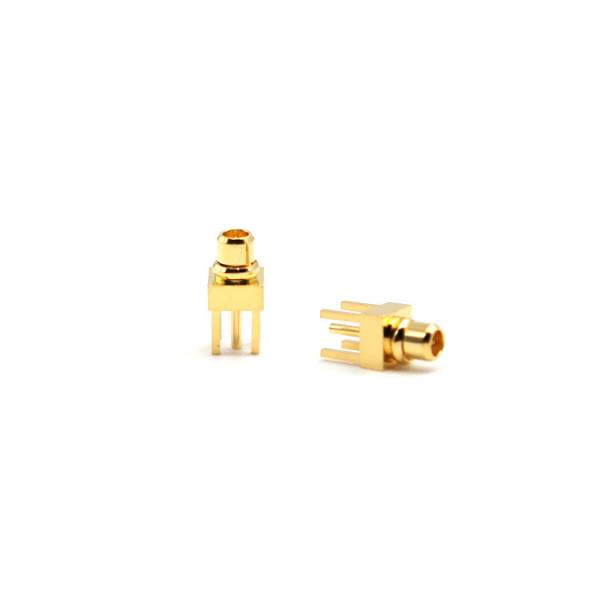

RF Connector MMCX Male PCB Mount Images
